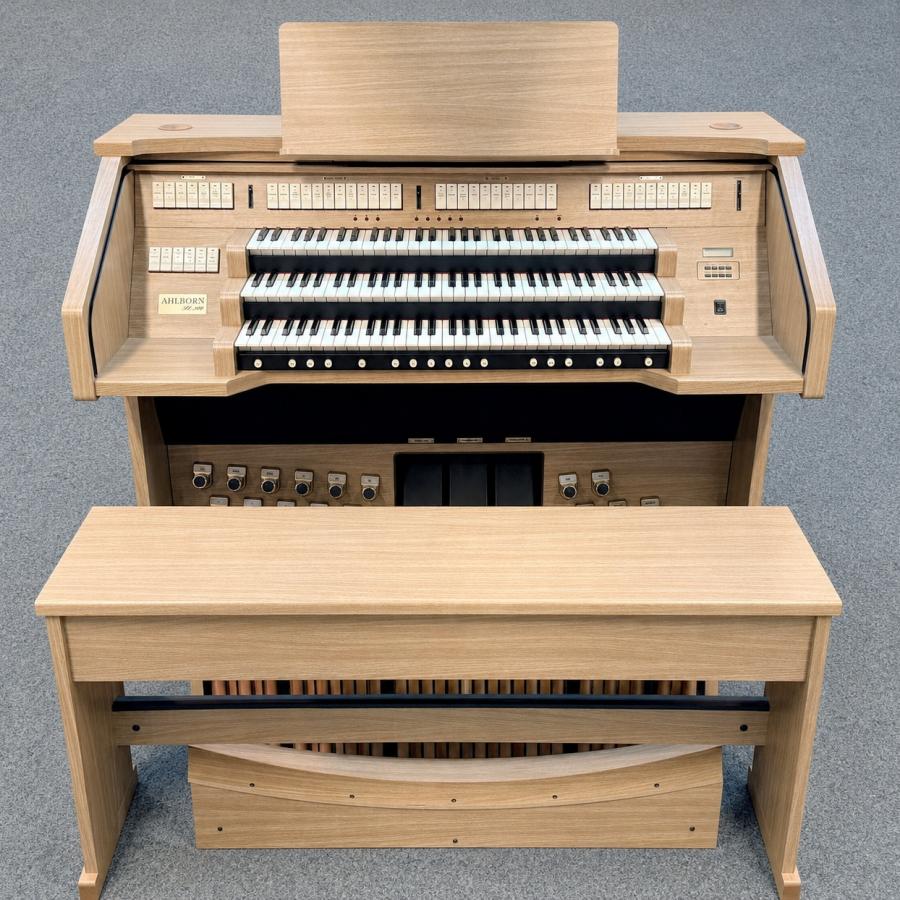

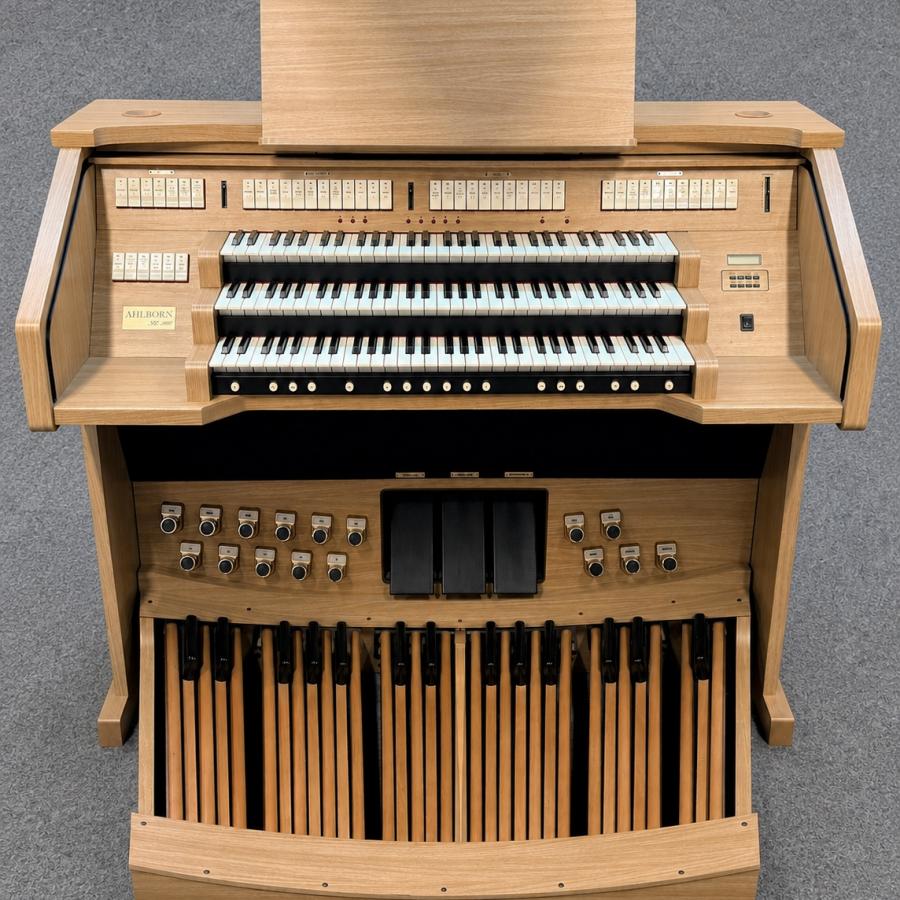

Ahlborn SL300

Dimensions (W x H x D):
1.450 x 1.180 x 760 / 1.150* mm
57.1" x 46.5" x 30" / 45.3" *
(*with pedalboard)
Weight: 166 kg / 366 lbs (without bench and pedalboard)

Triple memory Combination Action with 5 general pistons duplicated by toe studs. Set and General Cancel pistons. Automatic return to hand-set registration

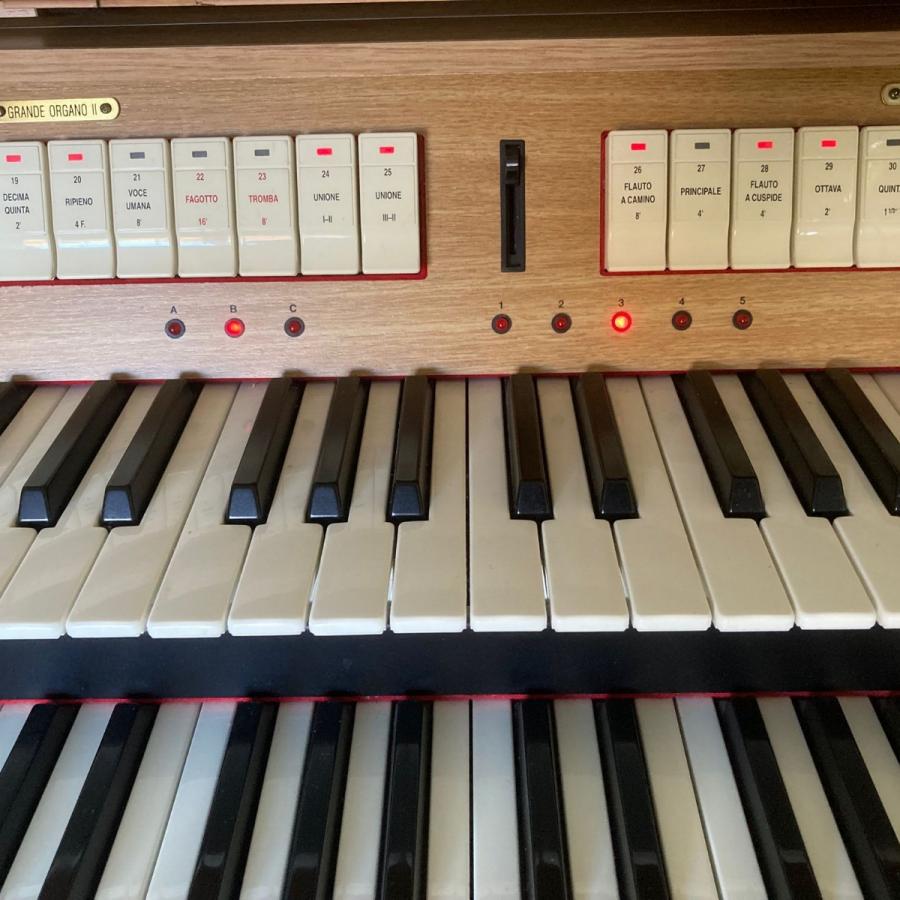

17 reversible thumb pistons with indicator lights: Set, Combination Action, General Cancel, Couplers, Automatic Pedal, Tutti

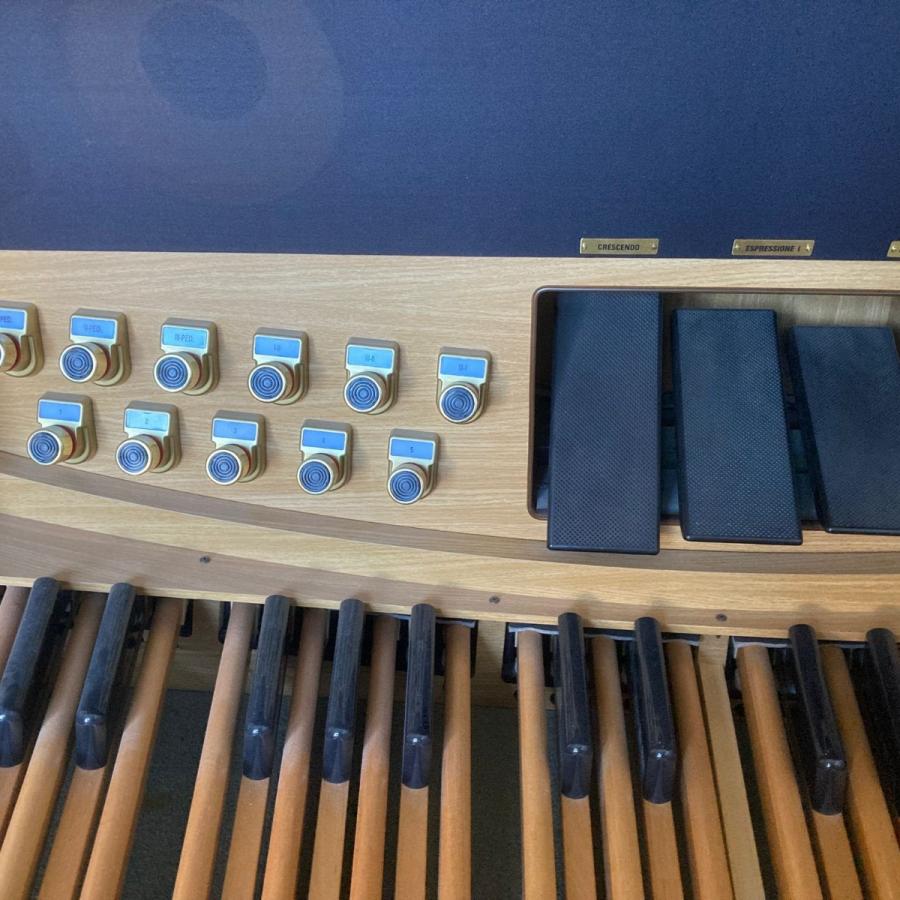

16 Reversible toe studs: Couplers, Combination Action, Plenum I, II, III, Reeds, Tutti
Balanced Crescendo pedal (9 levels) with display control
Swell and Choir/Positive Expression Pedal
Slider controls for Great and Pedal volume
Crescendo, Plenum I - Plenum II - Plenum III, Reeds, Tutti: programmable
Transposer (-6 / +3 semitones)
Master and Headphone volume
Digital Reverb selector
Headphone Output
MIDI (In-Out-Thru)

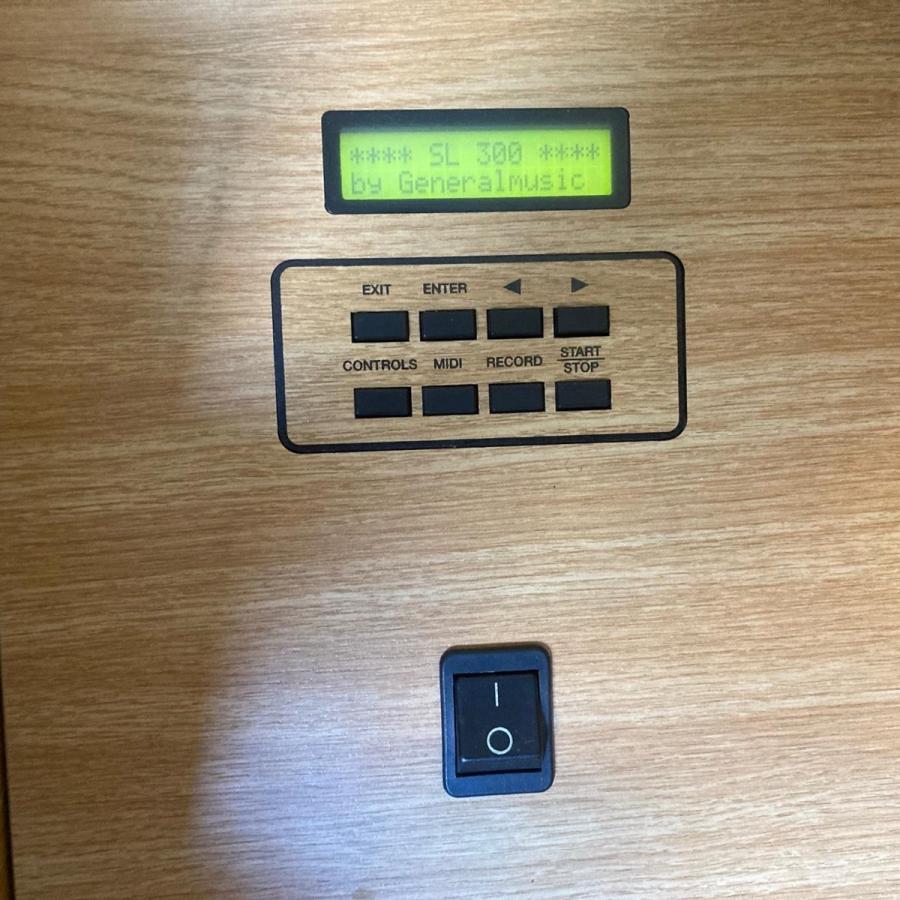

• Built-In PROGRAMMING SECTION™ with alphanumeric display, for the following functions:
• ◊ Sound channelling for each division (Great - Positive - Swell - Pedal);
• Windchest Layouts™:
• – C / C sharp
• – central peak
• – lateral wings
• – wing
• ◊ General sound channelling:
• – Mono
• – Panoramic 1
• – Panoramic 2
• ◊ Tremulants I and III speed and depth (with effect on the amplitude and frequency modulation)
• ◊ Fine Pitch adjustment of the instrument
• ◊ Temperaments (on A440 and 415):
• – Equal
• – Meantone
• – Werckmeister III
• – Tartini-Vallotti
• ◊ Ensemble Effect
• ◊ Manual inversion I and II
• ◊ Great and Pedal enclosed
• ◊ Programmability of MIDI channels for each section
• Built-In SEQUENCER (13.000 standard notes / 26.000 events)
